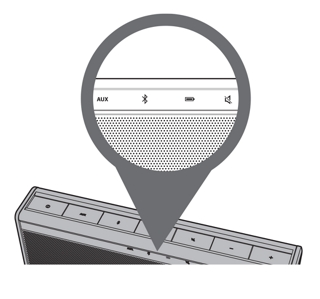

The status indicators, located on the front of the SoundLink® speaker, illuminate when a source or feature is activated.
Indicates the speaker is playing an external audio device connected to the Aux input.
Indicates the SoundLink® speaker state when a Bluetooth® source is selected:
- Discoverable: Speaker is discoverable and ready to pair with a new device. The indicator slowly fades on and off approximately once every second
- Connecting: Speaker is attempting to connect to a paired device. The indicator flashes on and off approximately twice every second
- Connected: Speaker is connected to a paired device. The indicator remains on
- Disconnected: Speaker is available to connect to any paired device. The indicator flashes on and off approximately once every three seconds
Flashes to indicate when the sound is muted.
